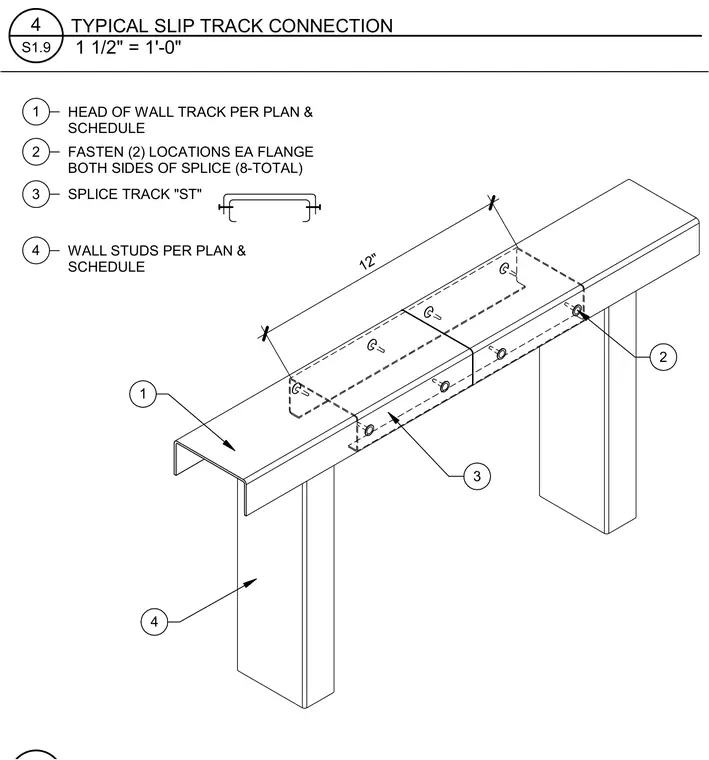

Two sections of head of wall track align end-to-end atop vertical wall studs. A twelve-inch splice track sleeve fits inside the main track profiles across the joint. Fasteners secure each flange with two locations on both sides of the splice for a total of eight fasteners.
1 HEAD OF WALL TRACK PER PLAN & SCHEDULE 1 2 FASTEN (2) LOCATIONS EA FLANGE BOTH SIDES OF SPLICE (8-TOTAL) 3 SPLICE TRACK "ST" 12" 4 WALL STUDS PER PLAN & SCHEDULE 4 3 2 1 1/2" = 1'-0" S1.9 4 TYPICAL SLIP TRACK CONNECTION
