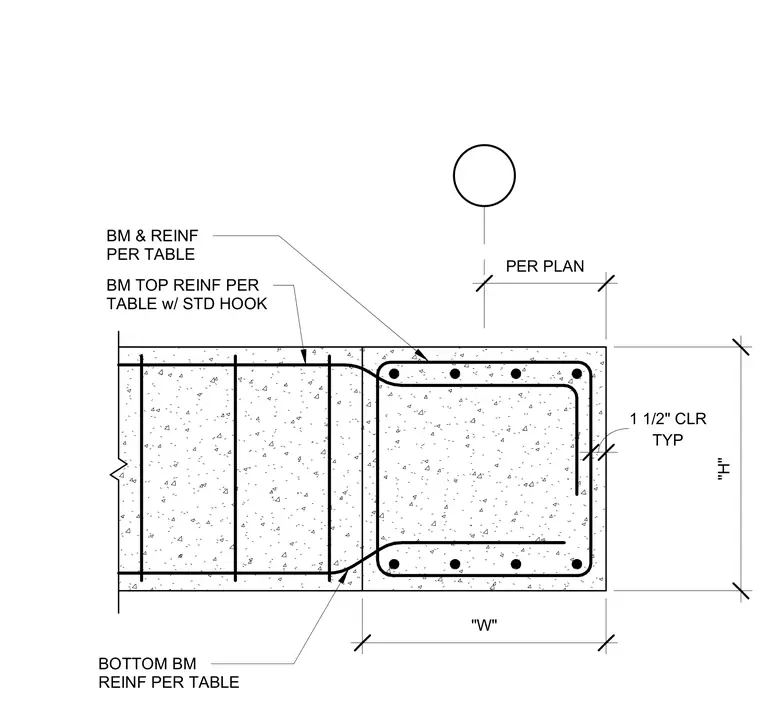

A concrete slab connects to a reinforced concrete beam sized per plan with dimensions "W" and "H". The assembly features top beam reinforcement with standard hooks and bottom beam reinforcement detailed per schedule. Slab reinforcement extends into the beam with a typical 1 1/2 inch clearance.
TYP 1 1/2" CLR "H" "W" BM TOP REINF PER TABLE w/ STD HOOK BOTTOM BM REINF PER TABLE BM & REINF PER TABLE PER PLAN
