Structural · S-4VV2C

Typical Closure Plate Overhang L Less Than or Equal to 12 Inches

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Columns Walls Curtain Walls Facades / Cladding Floors / Slabs Decks Arches Bracing Anchors / Embeds Connections / Plates Roof / Floor Openings

Connections

Bracing Connection Welded Connection Bolted Connection Deck Attachment Embed Plate

About this detail

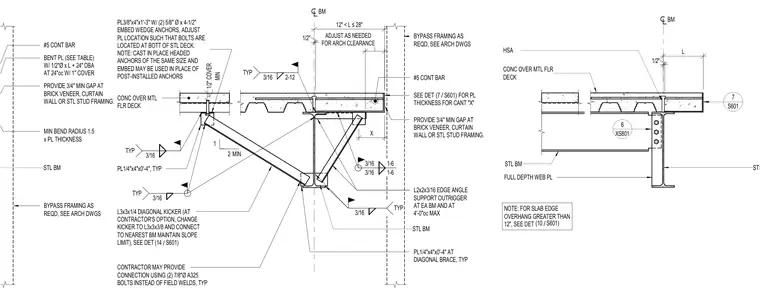

A steel beam supports a concrete over metal floor deck with a cantilevered slab edge overhang. An edge angle supports an outrigger at each beam and at four feet on center maximum, braced by a diagonal kicker angle welded with three-sixteenths fillet welds. A bent plate with a one-half-inch diameter by length plus twenty-four-inch deformed bar anchor at twenty-four inches on center with one-inch cover anchors the edge. Cast-in-place headed anchors of the same size and embedment may be used in place of post-installed anchors. A continuous number five reinforcing bar is provided, and a minimum three-quarter-inch gap is maintained at brick veneer, curtain wall, or steel stud framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
