Structural · S-4VR3D

Steel Joist Bearing at HSS Post and Beam

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Roofs Decks Arches Bracing Connections / Plates

Connections

HSS Connection Bracing Connection

About this detail

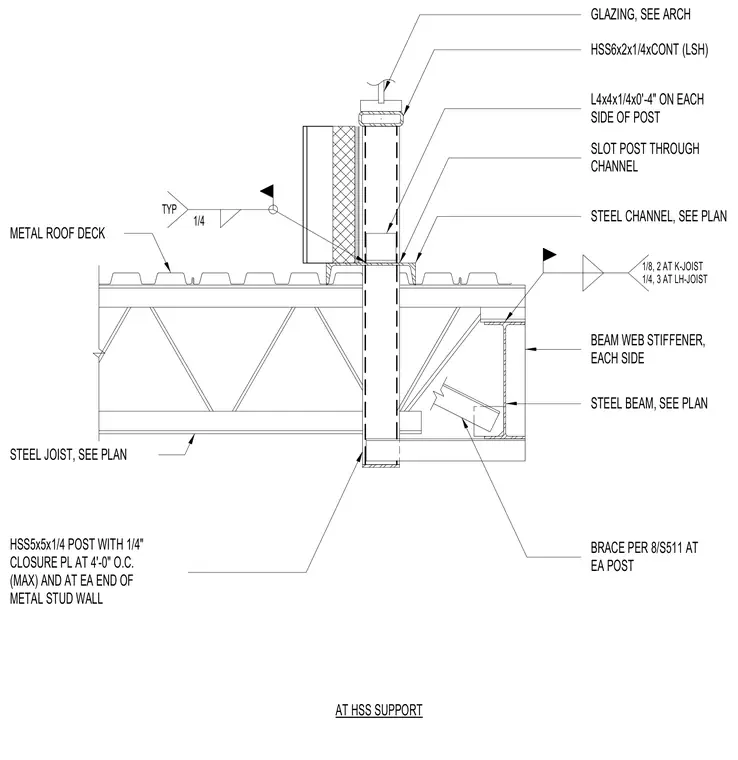

An open-web steel joist bears onto a structural steel beam, with web stiffeners welded to each side of the beam web and a fillet weld securing the joist seat. A continuous steel channel receives a hollow structural section post, measuring five by five inches with a quarter-inch thickness, which is slotted through the channel and fitted with a quarter-inch closure plate at four feet on center maximum and at each end of the metal stud wall. A horizontal hollow structural section member measuring six by two inches runs continuously at the top of the post to support architectural glazing. Additional angle sections measuring four by four by one-quarter inches by four inches long attach to each side of the post, and a diagonal brace connects back to the post per structural details.
