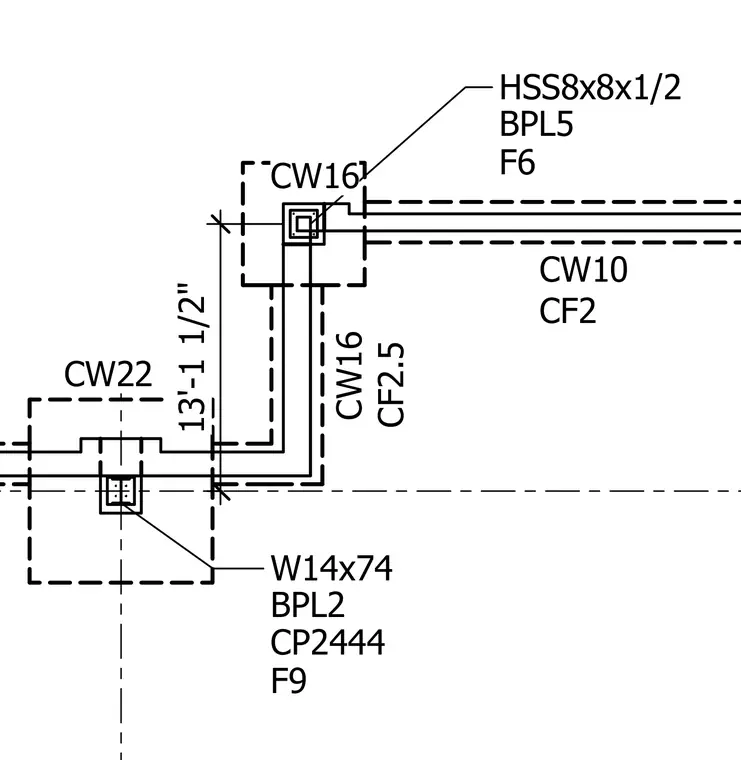

This structural plan detail indicates framing configurations centered on columns, utilizing an HSS8x8x1/2 hollow structural section column with base plate BPL5 and designation F6, paired with a W14x74 wide-flange beam featuring base plate BPL2 and designation F9. Additional callouts reference coordinate points CP2444 and various wall and column line marks including CW10, CW16, and CW22 along with offset dimensions such as 13'-1 1/2".
W14x74 BPL2 F9 CW16 CF2.5 CW10 CF2 HSS8x8x1/2 BPL5 F6 CP2444 13'-1 1/2" CW16 CW22
