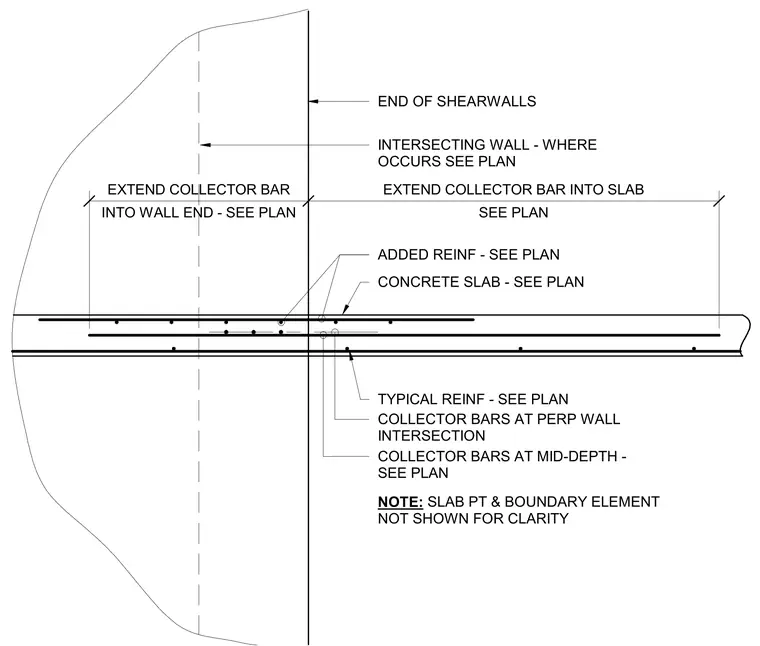

Collector bars extend into the concrete slab and wall end at shear wall intersections per plan. Added reinforcement and typical reinforcement are detailed within the concrete slab. Collector bars are positioned at mid-depth and at perpendicular wall intersections as specified. Slab post-tensioning and boundary elements are omitted for clarity.
INTERSECTING WALL - WHERE OCCURS SEE PLAN INTO WALL END - SEE PLAN EXTEND COLLECTOR BAR SEE PLAN EXTEND COLLECTOR BAR INTO SLAB END OF SHEARWALLS COLLECTOR BARS AT PERP WALL INTERSECTION COLLECTOR BARS AT MID-DEPTH - SEE PLAN NOTE: SLAB PT & BOUNDARY ELEMENT NOT SHOWN FOR CLARITY ADDED REINF - SEE PLAN CONCRETE SLAB - SEE PLAN TYPICAL REINF - SEE PLAN
