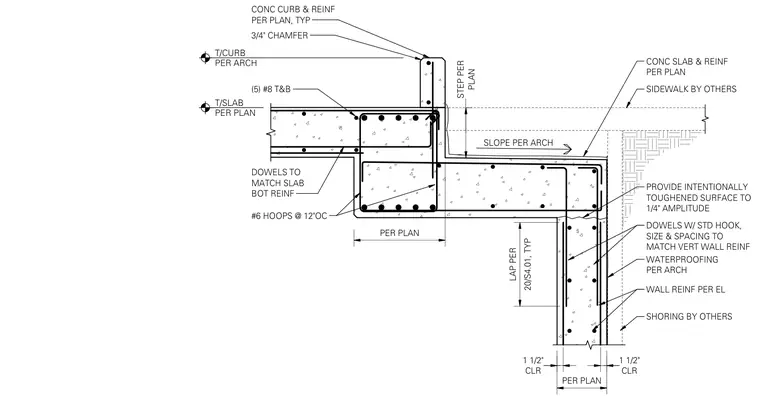

A reinforced concrete slab steps up to a concrete curb with a 3/4-inch chamfer at the top edge. The step is supported by a concrete beam or thickened slab section reinforced with five number 8 bars top and bottom, and number 6 hoops spaced at 12 inches on center. Dowels with standard hooks match the slab bottom reinforcement and extend into the support. A concrete slab and sidewalk by others abut the assembly, featuring a slope per architectural drawings and an intentionally roughened surface with a 1/4-inch amplitude. The supporting wall below includes vertical wall reinforcement, waterproofing per architectural specifications, and dowels with standard hooks sized to match the wall reinforcement.
T/CURB PER ARCH T/SLAB PER PLAN PER PLAN SLOPE PER ARCH PROVIDE INTENTIONALLY TOUGHENED SURFACE TO 1/4" AMPLITUDE DOWELS W/ STD HOOK, SIZE & SPACING TO MATCH VERT WALL REINF WATERPROOFING PER ARCH WALL REINF PER EL SHORING BY OTHERS SIDEWALK BY OTHERS CONC SLAB & REINF PER PLAN 20/S4.01, TYP LAP PER CONC CURB & REINF PER PLAN, TYP #6 HOOPS @ 12"OC 3/4" CHAMFER (5) #8 T&B CLR 1 1/2" CLR 1 1/2" PER PLAN PLAN STEP PER DOWELS TO MATCH SLAB BOT REINF
