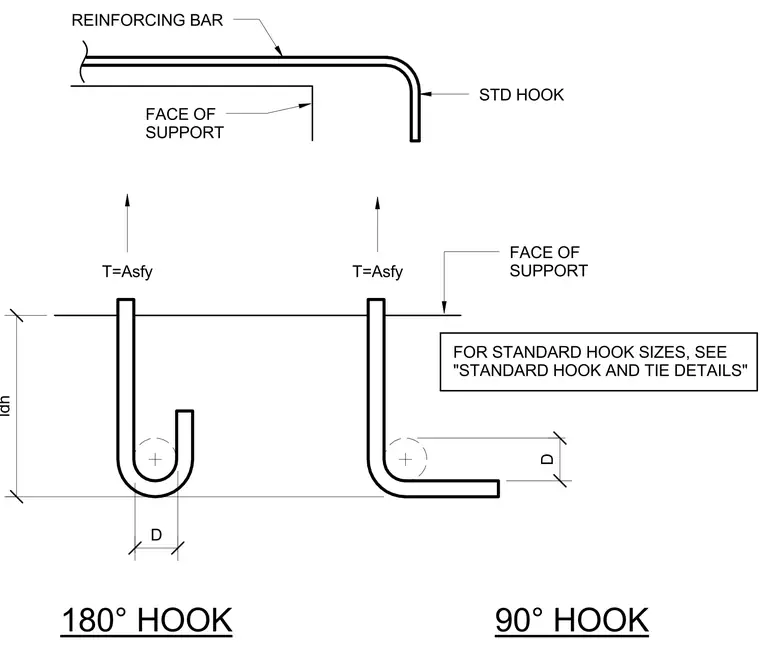

Reinforcing bars terminate at the face of support with standard hooks having development length ldh and bend diameter D. Tension force T equals Asfy. Standard hook configurations include ninety-degree and one-eighty-degree bends. Standard hook sizes are referenced to the standard hook and tie details sheet.
REINFORCING BAR T=Asfy FACE OF SUPPORT FACE OF SUPPORT STD HOOK 90° HOOK 180° HOOK T=Asfy D D ldh FOR STANDARD HOOK SIZES, SEE "STANDARD HOOK AND TIE DETAILS"
