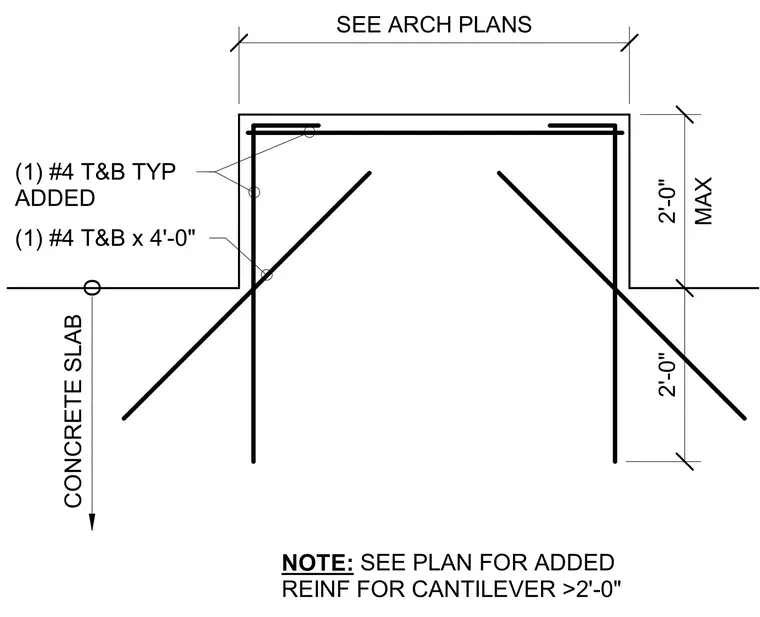

Reinforcement requirements for a cantilevered concrete slab with a maximum cantilever span of two feet. One number four bar is placed top and bottom typically, supplemented by an additional four-foot-long number four bar top and bottom at the transition. Additional reinforcement for cantilevers exceeding two feet must be verified per the architectural plans.
(1) #4 T&B TYP ADDED O CONCRETE SLAB SEE ARCH PLANS 2'-0" MAX 2'-0" (1) #4 T&B x 4'-0" NOTE: SEE PLAN FOR ADDED REINF FOR CANTILEVER >2'-0"
