Structural · S-4V874

Wide Flange Column to Wide Flange Beam Connection

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

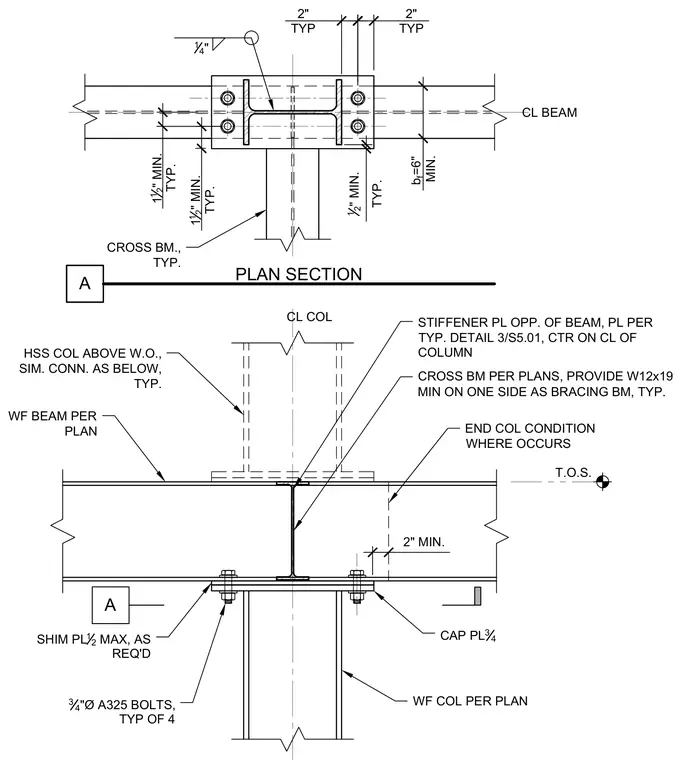

This structural steel connection features a wide flange beam resting on a wide flange column with a three-quarter-inch thick cap plate welded with a quarter-inch fillet weld. The assembly is secured using four three-quarter-inch diameter A325 bolts. Shim plates up to one-half-inch thick are provided as required beneath the connection. A stiffener plate is located on the opposite side of the beam centered on the column centerline, and a minimum W12x19 cross beam is provided on one side as a bracing member.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
