A typical long-span steel joist bearing connection at a concrete tilt-up wall panel joint features a structural steel joist girder with top chord bearing. The steel joist bears on an L6x6x3/8 by 0'-8" angle with two 1/2-inch stiffener plates, secured to a 1/2"x12"x1'-6" embed plate with six 3/4" diameter by 5" headed stud anchors cast into the concrete tilt-up panel. A 3/8"x6" continuous steel plate bridges the joint, secured by one 3/4" diameter A325 bolt in a long slotted hole parallel to the tilt-up panel. Two 1/2" diameter A325 erection bolts are required at all joists spanning 40'-0" or more. A bottom chord brace is provided by the joist or girder supplier typically at the joist mid-span of the girder, and the joist manufacturer is required to design the joist girder for a 10.0k axial load from the joist shoes across the joist girder.

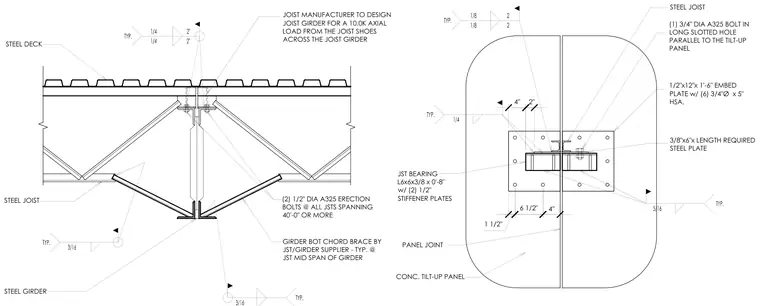

(1) 3/4" DIA A325 BOLT IN LONG SLOTTED HOLE PARALLEL TO THE TILT-UP PANEL CONC. TILT-UP PANEL JST BEARING L6x6x3/8 x 0'-8" w/ (2) 1/2" STIFFENER PLATES PANEL JOINT 4" 1 1/2" 6 1/2" 4" 2" 1/2"x12"x 1'-6" EMBED 3/$7(Z[ HSA. 3/8"x6"x LENGTH REQUIRED STEEL PLATE STEEL JOIST STEEL GIRDER (2) 1/2" DIA A325 ERECTION BOLTS @ ALL JSTS SPANNING 40'-0" OR MORE GIRDER BOT CHORD BRACE BY JST/GIRDER SUPPLIER - TYP. @ JST MID SPAN OF GIRDER STEEL JOIST STEEL DECK JOIST MANUFACTURER TO DESIGN JOIST GIRDER FOR A 10.0K AXIAL LOAD FROM THE JOIST SHOES ACROSS THE JOIST GIRDER
