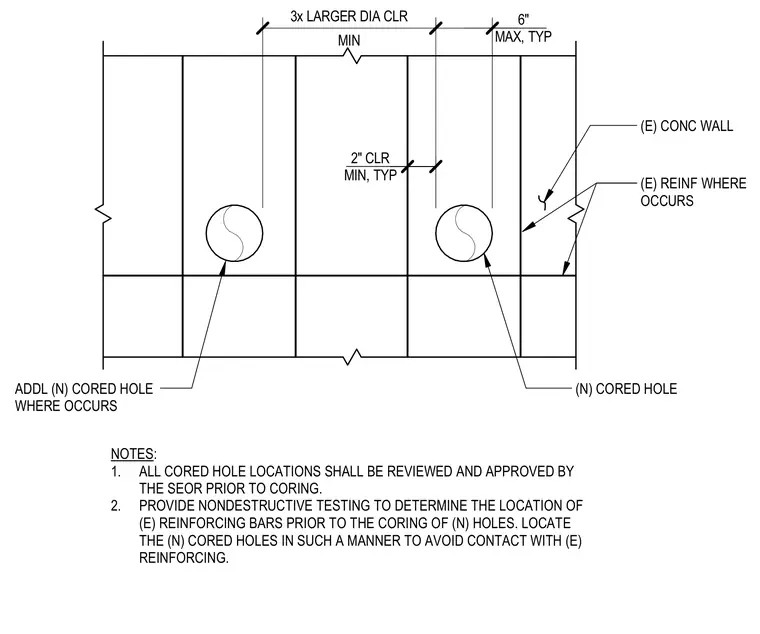

New cored holes are cut into an existing concrete wall containing existing reinforcing steel. Nondestructive testing is required to locate existing reinforcing bars prior to coring to avoid contact. All cored hole locations must be reviewed and approved by the structural engineer of record prior to coring. Clearance between adjacent holes must be a minimum of three times the larger diameter, with a typical maximum spacing of six inches and a minimum clearance of two inches.
MIN 3x LARGER DIA CLR (E) CONC WALL (E) REINF WHERE OCCURS (N) CORED HOLE ADDL (N) CORED HOLE WHERE OCCURS NOTES: 1. ALL CORED HOLE LOCATIONS SHALL BE REVIEWED AND APPROVED BY THE SEOR PRIOR TO CORING. 2. PROVIDE NONDESTRUCTIVE TESTING TO DETERMINE THE LOCATION OF (E) REINFORCING BARS PRIOR TO THE CORING OF (N) HOLES. LOCATE THE (N) CORED HOLES IN SUCH A MANNER TO AVOID CONTACT WITH (E) REINFORCING. MAX, TYP 6" MIN, TYP 2" CLR
