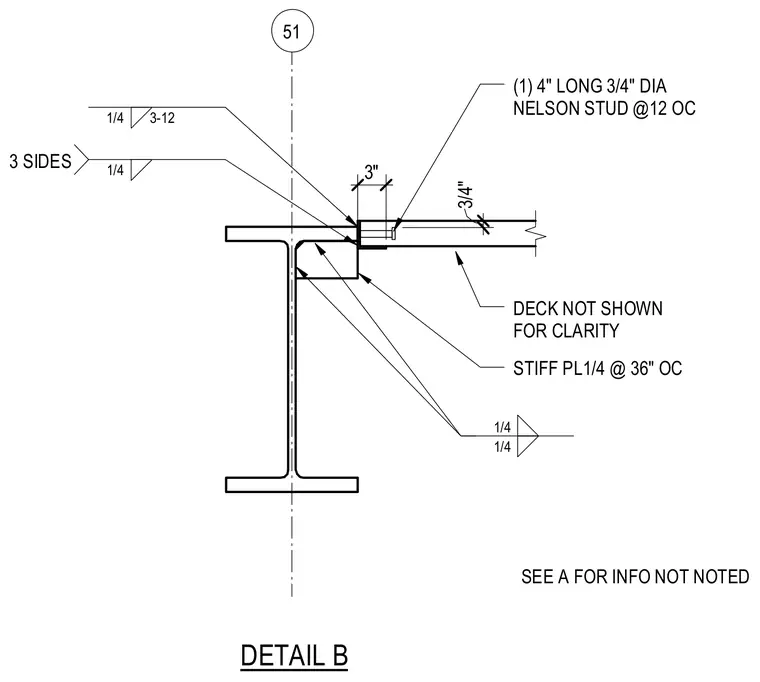

An embed plate is welded to the top flange of a steel beam using a quarter-inch fillet weld applied on three sides. One four-inch long by three-quarter-inch diameter Nelson stud is welded to the plate at twelve inches on center. Quarter-inch thick stiffener plates are spaced at thirty-six inches on center beneath the flange. The metal deck is omitted for clarity.
51 (1) 4" LONG 3/4" DIA NELSON STUD @12 OC 3/4" STIFF PL1/4 @ 36" OC 3" DECK NOT SHOWN FOR CLARITY 1/4 1/4 SEE A FOR INFO NOT NOTED 3 SIDES 1/4 3-12 1/4 DETAIL B
