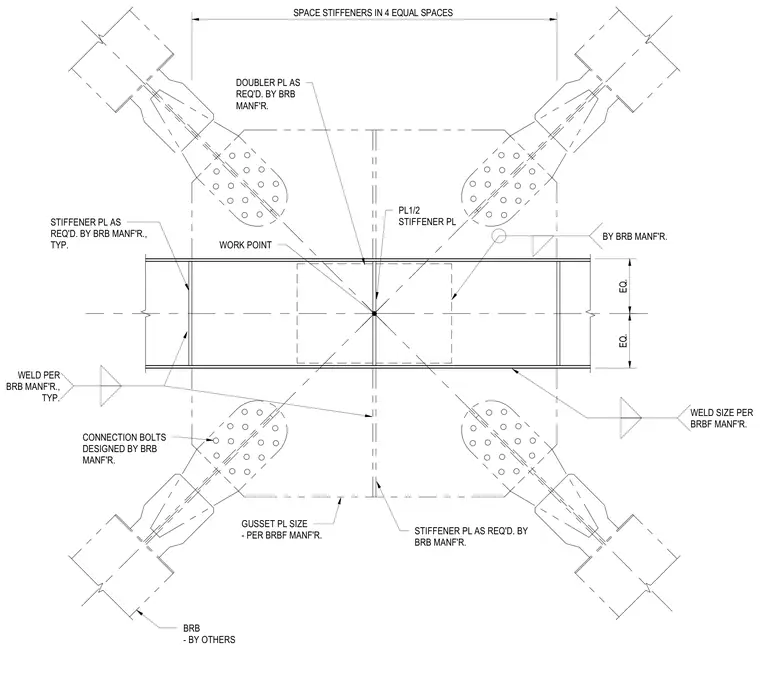

A double brace connection at a beam-column intersection for a buckling-restrained braced frame includes gusset plates and stiffener plates sized per the manufacturer, along with a half-inch thick stiffener plate and doubler plates as required. Connection bolts and welds are designed and sized per the buckling-restrained brace manufacturer, with buckling-restrained braces provided by others.
WORK POINT GUSSET PL SIZE - PER BRBF MANF'R. STIFFENER PL AS REQ'D. BY BRB MANF'R. CONNECTION BOLTS DESIGNED BY BRB MANF'R. BRB - BY OTHERS WELD PER BRB MANF'R., TYP. STIFFENER PL AS REQ'D. BY BRB MANF'R., TYP. EQ. EQ. SPACE STIFFENERS IN 4 EQUAL SPACES DOUBLER PL AS REQ'D. BY BRB MANF'R. WELD SIZE PER BRBF MANF'R. BY BRB MANF'R. PL1/2 STIFFENER PL
