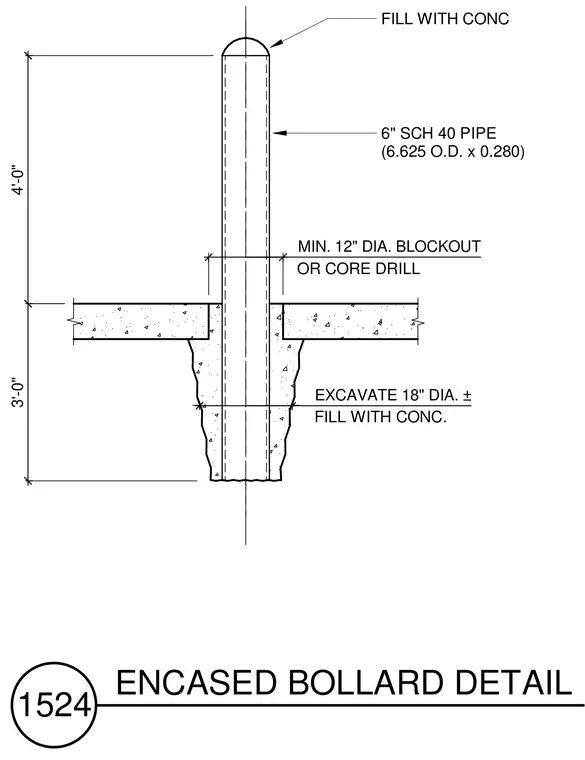

A six-inch Schedule 40 steel pipe with a 6.625-inch outside diameter and 0.280-inch wall thickness extends four feet above the finished floor and is filled entirely with concrete. The pipe passes through a minimum 12-inch diameter blockout or core-drilled opening in the concrete slab. Below the slab, an 18-inch diameter excavation extends three feet deep and is filled with concrete to anchor the assembly.
6" SCH 40 PIPE (6.625 O.D. x 0.280) FILL WITH CONC 4'-0" 3'-0" MIN. 12" DIA. BLOCKOUT EXCAVATE 18" DIA. ± OR CORE DRILL FILL WITH CONC. 1524 ENCASED BOLLARD DETAIL
