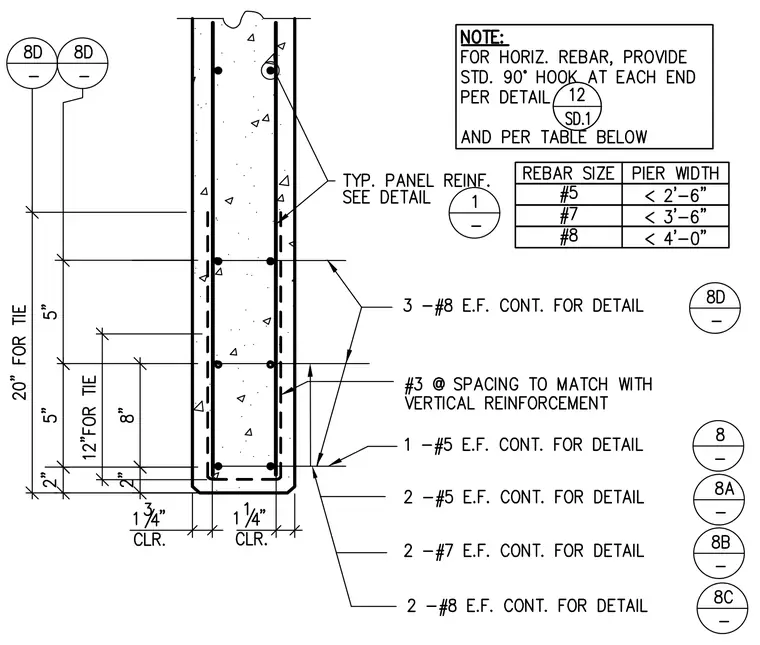

Reinforcement layout for a concrete lintel or pier features horizontal and vertical reinforcing bars of designated sizes, including three number 8 bars and various number 5 through number 8 bars each face continuous for detail. Transverse ties are spaced at specific intervals with a 20-inch overall tie height and variable spacing of 5 inches and 8 inches. Concrete cover is provided at 1-1/4 inches and 1-3/4 inches on opposing faces. A companion table correlates rebar size with pier width, and a general note mandates standard 90-degree hooks at each end of horizontal rebar.
