A four-by-four wood post is secured to a concrete masonry unit wall sized per plan using half-inch diameter Simpson Titen HD concrete screw anchors spaced at three feet on center and six inches from the end, with a minimum of four anchors per ESR number 1056. The post maintains a two-inch minimum typical edge distance from the masonry face and a four-and-a-half-inch offset dimension. One-by-three wood furring strips spaced at three inches on center are fastened to the post assembly using number eight by four-and-a-half-inch wood screws.

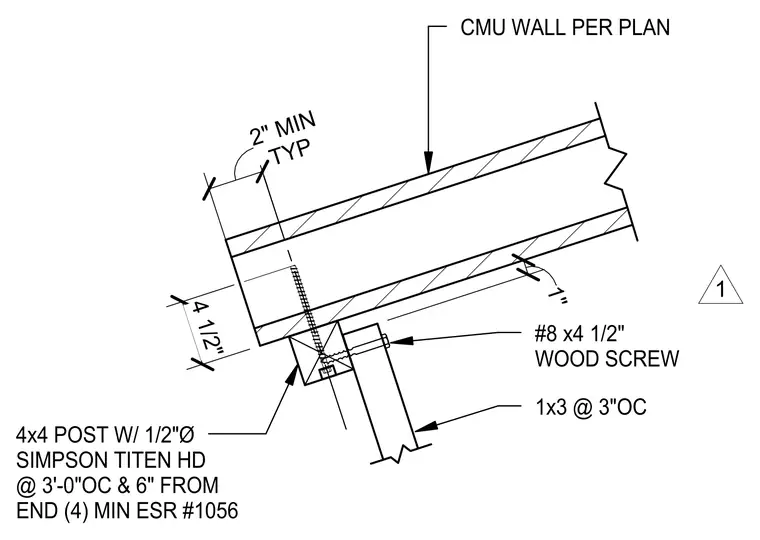

1" 4 1/2" TYP 2" MIN 1x3 @ 3"OC 4x4 POST W/ 1/2"Ø SIMPSON TITEN HD @ 3'-0"OC & 6" FROM END (4) MIN ESR #1056 CMU WALL PER PLAN #8 x4 1/2" WOOD SCREW 1
