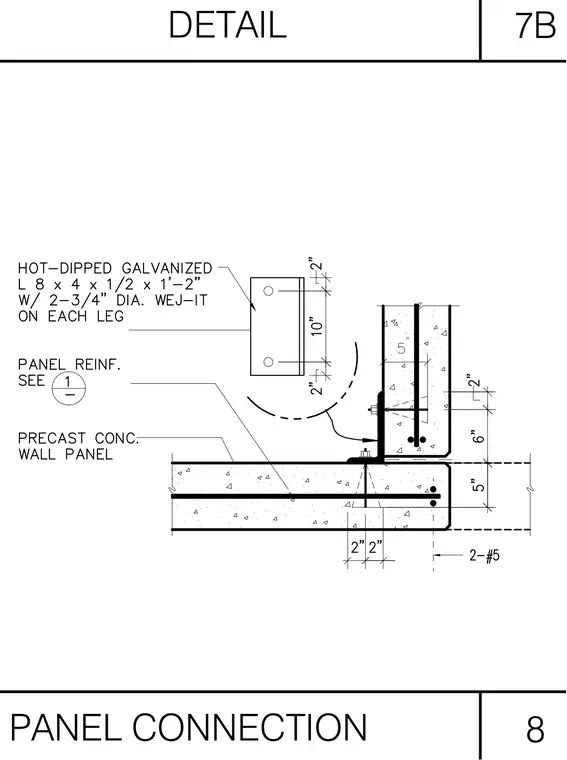

Precast concrete wall panels connect using a hot-dipped galvanized angle measuring L 8 x 4 x 1/2 by 1 foot 2 inches long with two 3/4-inch diameter Wej-It wedge anchors on each leg. The wall panels feature reinforcing steel detailed per sheet 1 and have a thickness of 5 and 6 inches with 2-#5 reinforcing bars at the corner junction.
