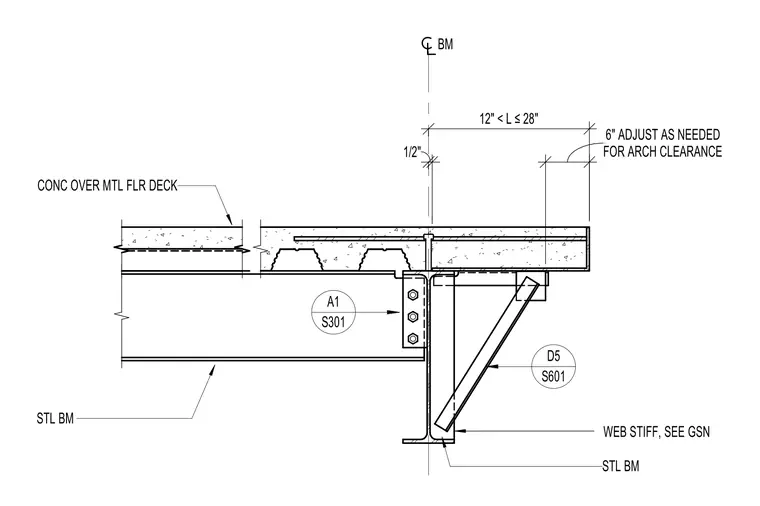

Concrete over metal floor deck bears on a steel beam framing connection featuring a web stiffener. The assembly includes a six-inch adjustment allowance for architectural clearance. A supporting steel beam receives the framing member with a bolted connection.
CONC OVER MTL FLR DECK 1/2" 12" < L ≤ 28" STL BM STL BM BM WEB STIFF, SEE GSN A1 S301 D5 S601 FOR ARCH CLEARANCE 6" ADJUST AS NEEDED
