Structural · S-4TECC

Column Supported on Continuous and End Beams

Materials

Steel

Elements

Columns Beams

Connections

Bolted Connection

About this detail

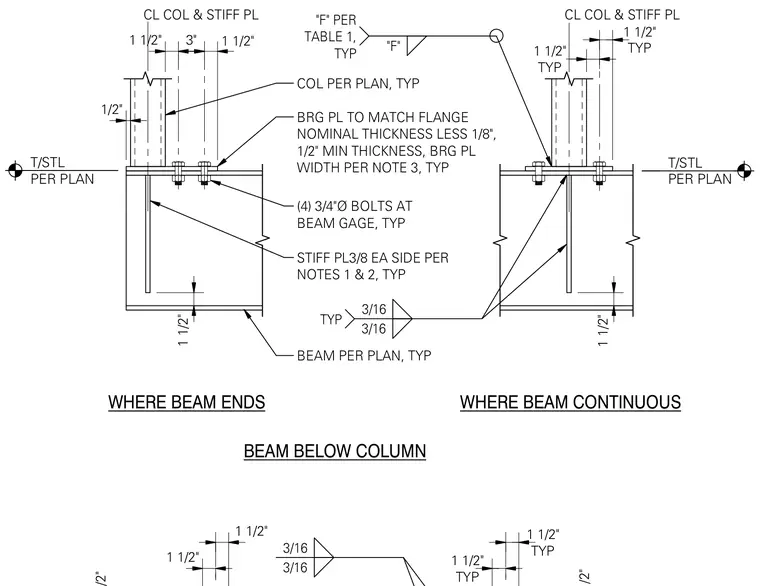

This connection details a structural steel column supported by a steel beam configured for both continuous and terminating conditions. The column rests on a bearing plate sized to match the flange nominal thickness less one-eighth inch, with a one-half inch minimum thickness and width per notes. Four three-quarter-inch diameter bolts secure the column base at the beam gage. Three-eighths-inch thick stiffener plates are welded to each side of the beam web aligned with the column centerline using three-sixteenths-inch fillet welds. The supporting beam is detailed per plan with top-of-steel elevations referenced accordingly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
