Structural · S-4TCXV

Typical Raised Floor Wireway Support

Materials

Concrete Steel

Elements

Columns Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage

About this detail

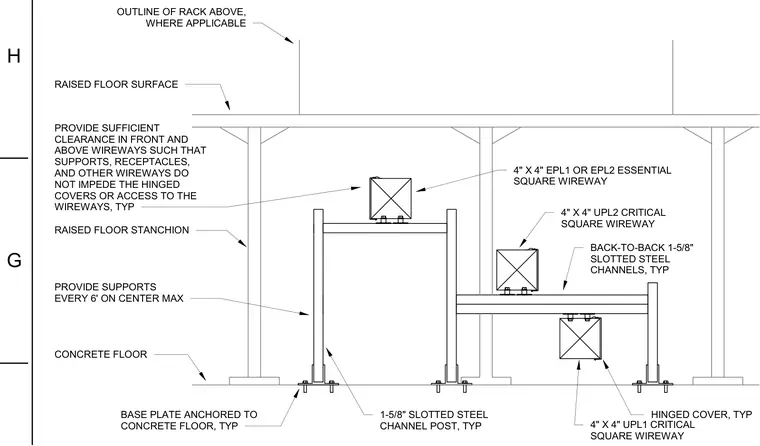

Structural support framing for square wireways mounts beneath a raised floor surface and anchors to a structural concrete floor. Vertical posts consist of one-and-five-eighths-inch slotted steel channels, spaced at a maximum of six feet on center. Base plates anchor directly to the concrete floor slab. Horizontal framing uses back-to-back slotted steel channels supporting four-by-four-inch critical and essential square wireways equipped with hinged covers. Clearances must be maintained in front of and above the wireways to ensure unhindered access to hinged covers and receptacles.
