Structural · S-4TBFM

Steel Shim and Framing Connection at Lower Beams

Materials

Elements

About this detail

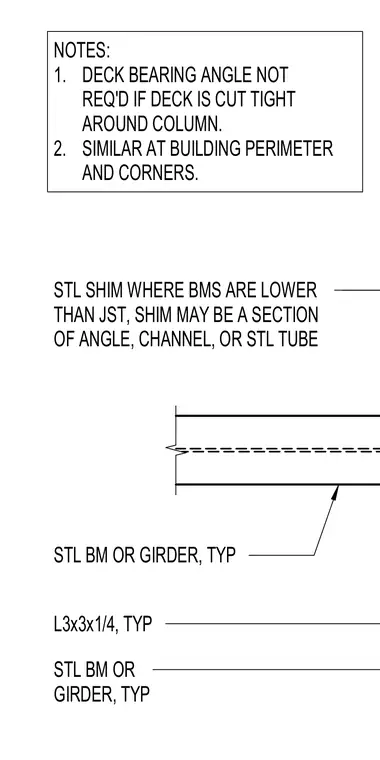

A steel shim is placed where steel beams are lower than the joist, and the shim may consist of a section of angle, channel, or steel tube. A typical L3x3x1/4 angle connects the steel beam or girder. A deck bearing angle is not required if the deck is cut tight around the column, and this detail is similar at the building perimeter and corners.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
