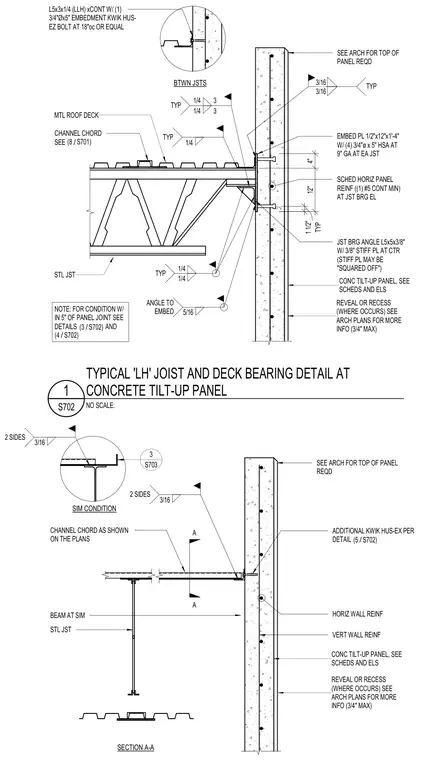

A long-span steel open-web joist bears onto a concrete tilt-up wall panel via a joist bearing angle consisting of an L5x5x3/8 angle with a three-eighths-inch stiffener plate at the center. The bearing angle is welded to a half-inch by twelve-inch by one-foot-four-inch embed plate anchored into the concrete wall with four three-quarter-inch diameter by five-inch heavy-duty sleeve anchors at a nine-inch gauge. Metal roof deck spans across the top chords of the joists and is supported by a continuous L5x3x1/4 angle attached to the concrete wall with three-quarter-inch diameter by five-inch concrete screw anchors at eighteen inches on center. A channel chord runs parallel to the wall between joists with welded connections detailed throughout the assembly.
A A SEE ARCH FOR TOP OF PANEL REQD EMBED PL 1/2"x12"x1'-4" W/ (4) 3/4"ø x 5" HSA AT 9" GA AT EA JST SCHED HORIZ PANEL REINF ((1) #5 CONT MIN) AT JST BRG EL JST BRG ANGLE L5x5x3/8" W/ 3/8" STIFF PL AT CTR (STIFF PL MAY BE "SQUARED OFF") NOTE: FOR CONDITION W/ IN 5" OF PANEL JOINT SEE DETAILS AND CHANNEL CHORD SEE BTWN JSTS 1/4 TYP 1/4 3 3 TYP 1/4 TYP 3/16 3/16 1/4 TYP 1/4 ANGLE TO EMBED 5/16 CONC TILT-UP PANEL, SEE SCHEDS AND ELS REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) MTL ROOF DECK 12" 4" TYP 1 1/2" STL JST / (3 S702) / (4 S702) / (8 S701) L5x3x1/4 (LLH) xCONT W/ (1) 3/4"Øx5" EMBEDMENT KWIK HUS- EZ BOLT AT 18"oc OR EQUAL SEE ARCH FOR TOP OF PANEL REQD 2 SIDES 3/16 CHANNEL CHORD AS SHOWN ON THE PLANS HORIZ WALL REINF VERT WALL REINF REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) CONC TILT-UP PANEL, SEE SCHEDS AND ELS SECTION A-A STL JST ADDITIONAL KWIK HUS-EX PER DETAIL / (5 S702) BEAM AT SIM 2 SIDES 3/16 SIM CONDITION 3 S703 NO SCALE: S702 1 TYPICAL 'LH' JOIST AND DECK BEARING DETAIL AT CONCRETE TILT-UP PANEL
