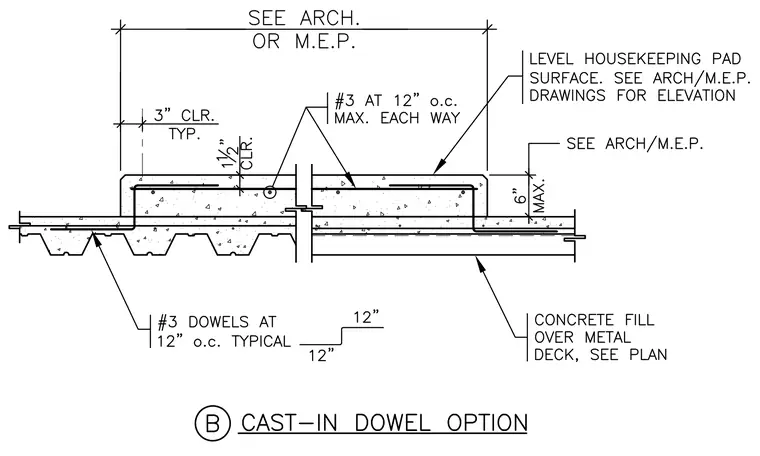

A concrete housekeeping pad is poured over concrete fill on metal deck, reinforced with number three bars spaced at twelve inches on center maximum each way. Number three dowels at twelve inches on center typical tie the pad to the supporting slab, maintaining three inches of clear cover typically and one and one-half inches of clear cover at the top. The pad has a maximum thickness of six inches, with dimensions and elevations coordinated per architectural and mechanical or electrical drawings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
