S-4SWSB — Threaded Rod Pipe Hanger Assembly

Mechanical · S-4SWSB

Threaded Rod Pipe Hanger Assembly

Materials

About this detail

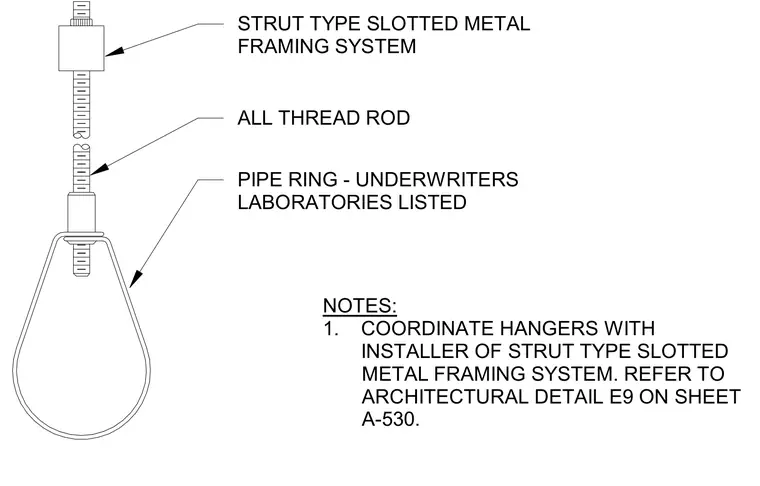

An Underwriters Laboratories listed pipe ring is suspended from an all-thread rod fastened into a strut type slotted metal framing system. Installation requires coordination with the installer of the slotted metal framing system per architectural detail E9 on sheet A-530.

ALL THREAD ROD PIPE RING - UNDERWRITERS LABORATORIES LISTED STRUT TYPE SLOTTED METAL FRAMING SYSTEM NOTES: 1. COORDINATE HANGERS WITH INSTALLER OF STRUT TYPE SLOTTED METAL FRAMING SYSTEM. REFER TO ARCHITECTURAL DETAIL E9 ON SHEET A-530.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
