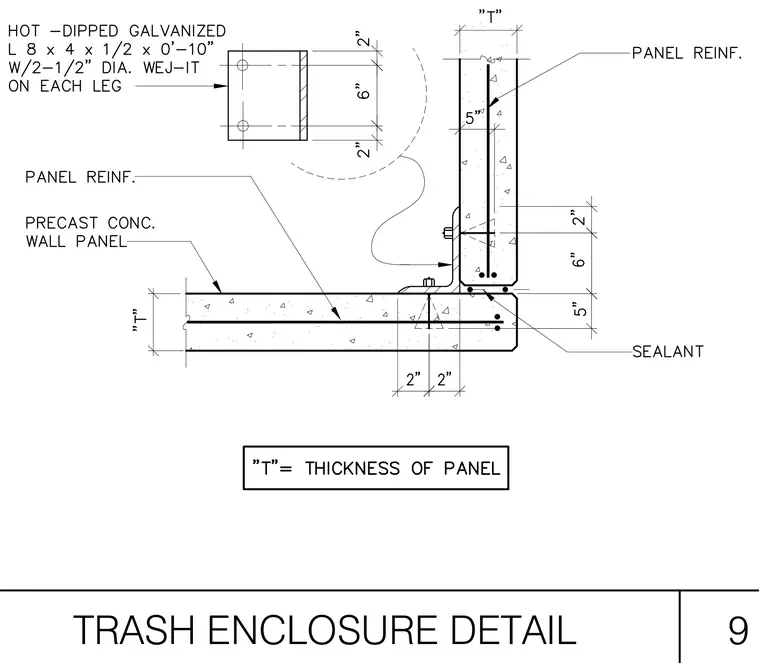

Precast concrete wall panels meet at a corner joint sealed with exterior sealant. A hot-dipped galvanized angle measuring L 8 x 4 x 1/2 by zero feet ten inches long spans the inside corner. Two half-inch diameter Wej-It wedge anchors secure the angle on each leg into the concrete. Panel reinforcement runs continuously through both precast concrete wall panels.
