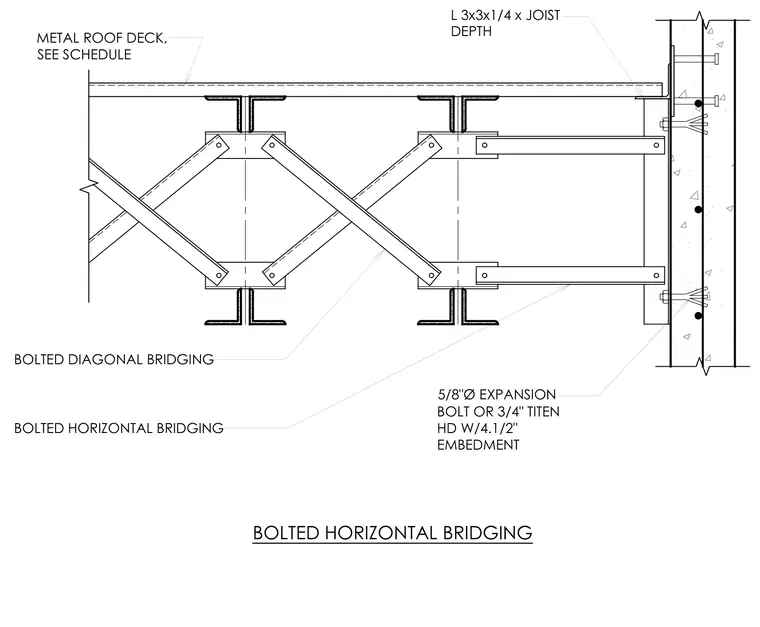

An open-web steel joist bears against a concrete tilt-up wall panel, stabilized by continuous bridging anchored directly to the concrete. Bolted diagonal bridging and bolted horizontal bridging intersect the joist chords at regular intervals. An angle member measuring L 3x3x1/4 by the joist depth connects the top chord to the wall. The wall connection utilizes either a five-eighths-inch diameter expansion bolt or a three-quarter-inch Titen HD screw with a four-and-a-half-inch embedment. A metal roof deck spans across the top chords of the joists per structural schedules.
5/8"Ø EXPANSION BOLT OR 3/4" TITEN HD W/4.1/2" EMBEDMENT L 3x3x1/4 x JOIST DEPTH BOLTED DIAGONAL BRIDGING BOLTED HORIZONTAL BRIDGING BOLTED HORIZONTAL BRIDGING METAL ROOF DECK, SEE SCHEDULE
