Structural · S-4SBJQ

Shown For Clarity

Materials

Concrete Reinforced Concrete Steel

Elements

Beams Stairs Floors / Slabs Anchors / Embeds Connections / Plates Reinforcing

Connections

Embed Plate

About this detail

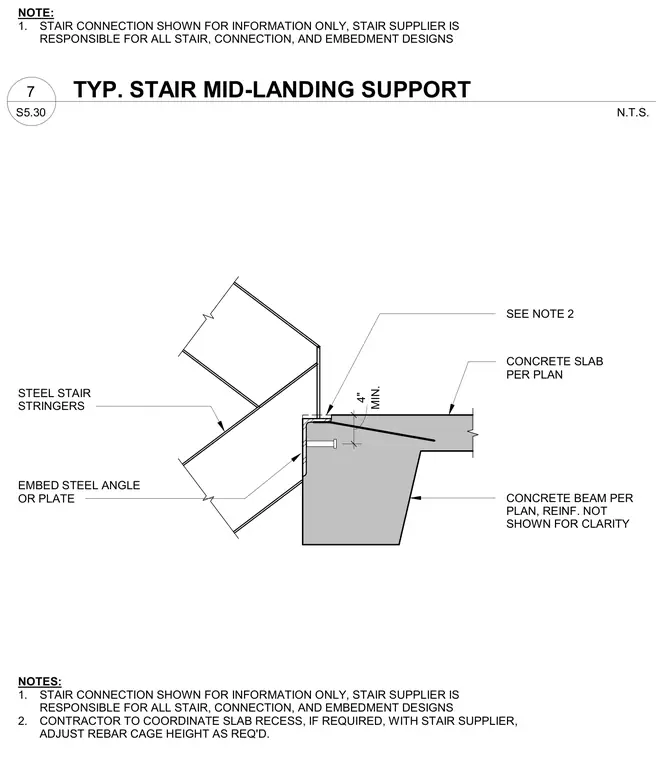

Steel stair stringers connect to a reinforced concrete beam and slab via an embedded steel angle or plate. A minimum four-inch clearance or dimension accommodates the stair interface with the slab per plan. The concrete slab and beam dimensions follow the architectural and structural plans with reinforcement omitted for clarity. The contractor coordinates any required slab recess with the stair supplier and adjusts the rebar cage height accordingly. The stair connection serves for information only, leaving the stair supplier responsible for all stair, connection, and embedment designs.
