Reinforcing bars extend past the face of support columns or walls by the development length "Ld", terminating straight unless a standard hook is required. Beam top and bottom reinforcing bars overlap by lap length "Ld" or a minimum of twelve bar diameters or twelve inches, with offset joggles limited to a maximum slope of one to six and a maximum offset of one inch. Column vertical reinforcement laps with a one-and-a-half-inch maximum separation or wired in contact.

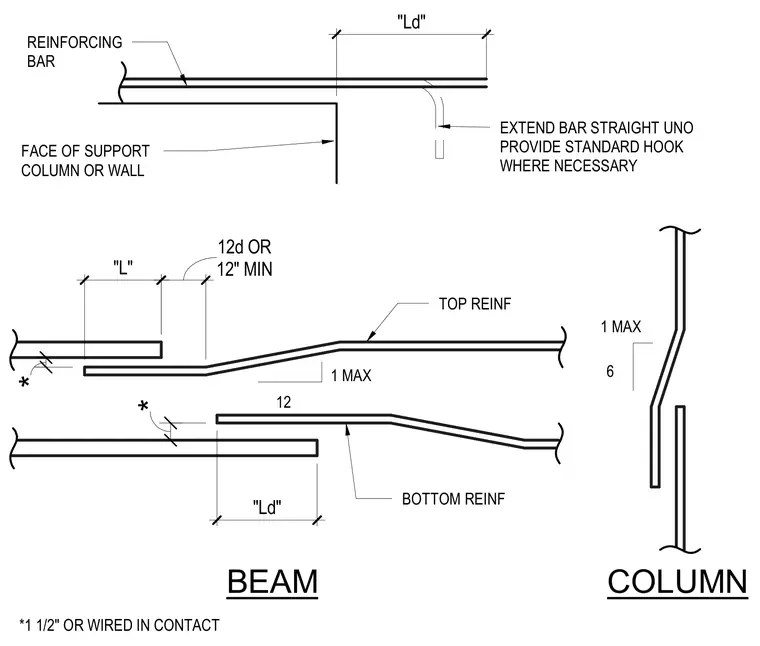

COLUMN *1 1/2" OR WIRED IN CONTACT FACE OF SUPPORT COLUMN OR WALL REINFORCING BAR BOTTOM REINF 1 MAX 12 6 TOP REINF 1 MAX EXTEND BAR STRAIGHT UNO PROVIDE STANDARD HOOK WHERE NECESSARY "Ld" "L" 12" MIN 12d OR * * "Ld" BEAM
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
