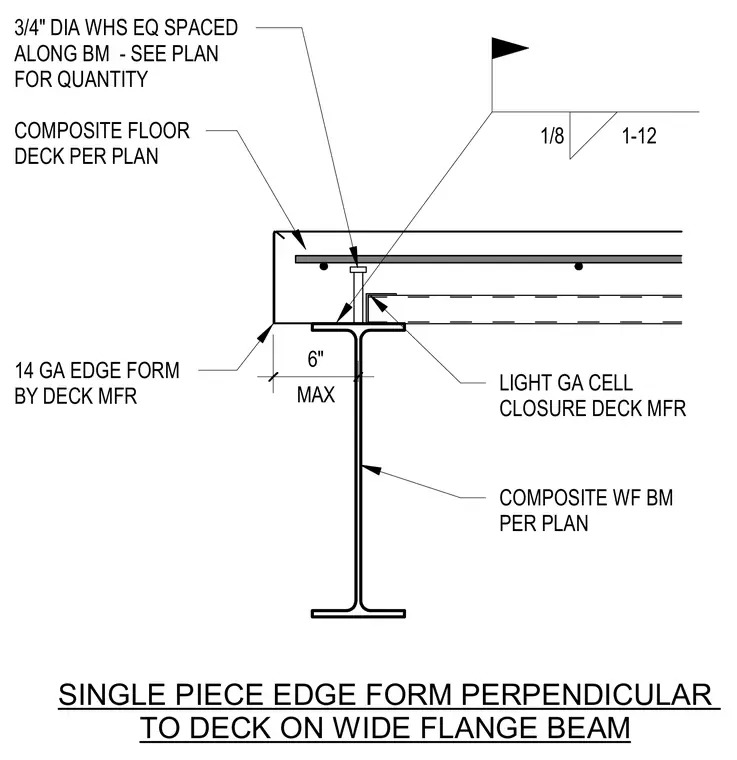

A composite floor deck bears perpendicularly on a wide flange beam with a light gauge cell closure supplied by the deck manufacturer. A fourteen gauge single piece edge form is provided by the deck manufacturer at the slab perimeter. Three-quarter inch diameter welded headed studs are equally spaced along the beam at a maximum six inch spacing and welded through the deck with a one-eighth inch fillet weld on a twelve-inch pitch.
LIGHT GA CELL CLOSURE DECK MFR COMPOSITE WF BM PER PLAN 14 GA EDGE FORM BY DECK MFR COMPOSITE FLOOR DECK PER PLAN 3/4" DIA WHS EQ SPACED ALONG BM - SEE PLAN FOR QUANTITY 1/8 1-12 MAX 6" SINGLE PIECE EDGE FORM PERPENDICULAR TO DECK ON WIDE FLANGE BEAM
