Structural · S-4RWER

Typical Brace Connection at Steel Beam

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Decks Bracing Connections / Plates

Connections

Braced Frame Connection Bracing Connection Welded Connection Shear Stud / Composite Deck Attachment

About this detail

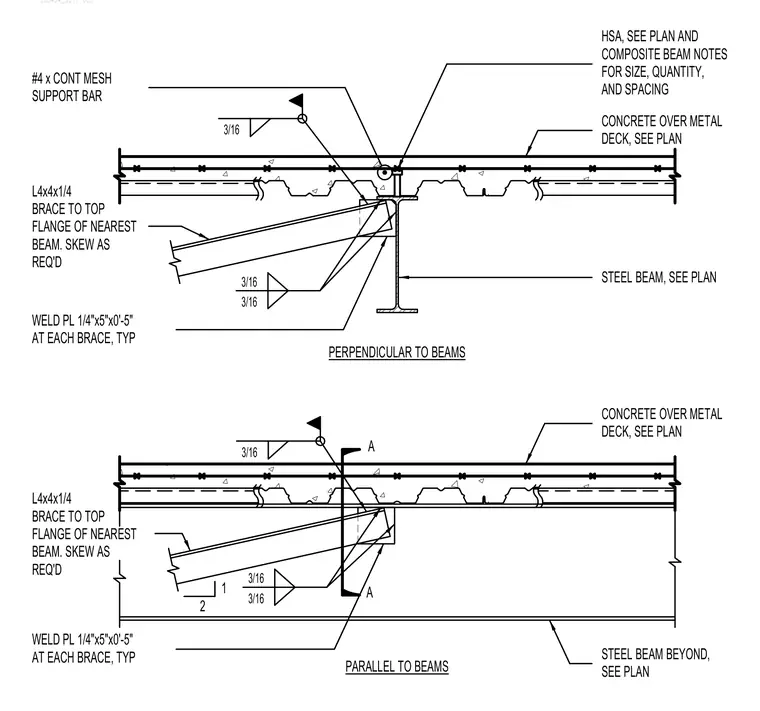

An angle brace sized at L4x4x1/4 connects to the top flange of the nearest steel beam with skewed orientation as required. A connection plate measuring 1/4 inch by 5 inches by 0 feet 5 inches is welded to each brace using 3/16 inch fillet welds. Headed stud anchors are provided per plan and composite beam notes for size, quantity, and spacing. A continuous #4 mesh support bar is positioned within the concrete over metal deck assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
