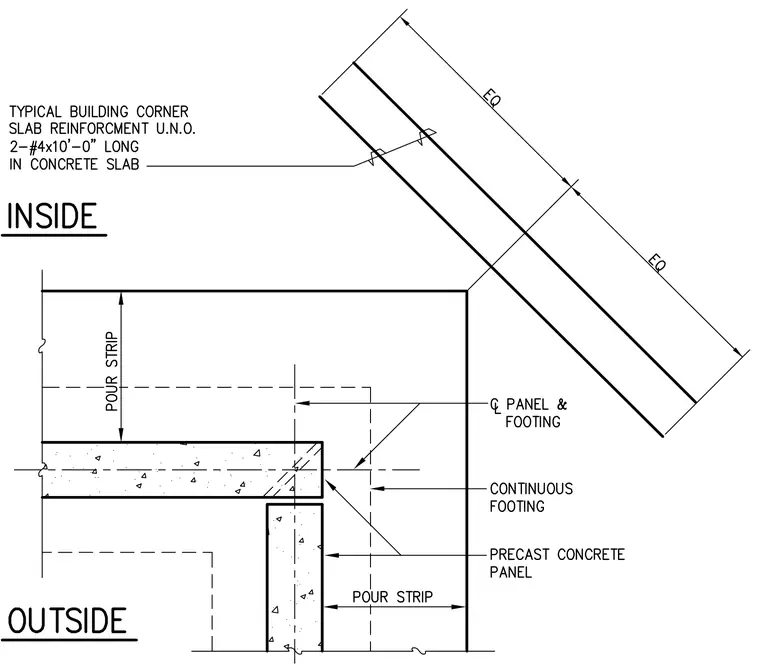

This typical building corner detail shows slab reinforcement and pour strip details at the intersection of precast concrete panels and a continuous footing. The concrete slab features two number 4 rebar, ten feet zero inches long, positioned at the slab reinforcement. A pour strip is established adjacent to the precast concrete panel and continuous footing, with the panel and footing centered on a common centerline. Equal dimensions govern the layout at the exterior corner alignment.
