Structural · S-4RPTQ

Steel Girder and Joist Bridging Connection at Tilt-Up Wall Panel

Materials

Steel

Elements

Beams Walls Decks Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection Bolted Connection Embed Plate

About this detail

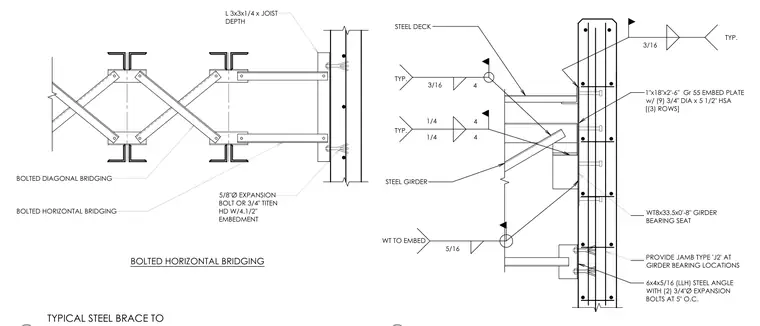

A steel girder and joist bridging assembly frames into a concrete tilt-up wall panel. The steel girder frames into a WT8x33.5 by zero-foot-eight-inch bearing seat, which is welded to a one-inch by eighteen-inch by two-foot-six-inch Grade 55 embed plate featuring nine three-quarter-inch diameter by five-and-a-half-inch HSA anchors arranged in three rows. A steel angle measuring six by four by five-sixteenths with two three-quarter-inch diameter expansion bolts at five inches on center provides additional framing support below. Bolted horizontal and diagonal bridging using three-by-three by quarter-inch angles span between the joists, tied back to the wall panel using five-eighths-inch diameter expansion bolts or three-quarter-inch Titen heavy-duty anchors with four-and-a-half-inch embedment. Various fillet welds including three-sixteenths, quarter-inch, and five-sixteenths size weld the structural tee to the embed plate and secure the framing components.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
