Steel beams frame into steel columns using single plates and bent plates for skewed conditions ranging from 0 to over 45 degrees. Stiffener or continuity plates measuring three-eighths of an inch thick are placed at beam-to-column connections. Bent plate thickness matches the single plate, and where clearance is insufficient to install bolts, the bent plate is welded to the beam web on three sides with a quarter-inch fillet weld. Full-height single plates and standard shear tabs facilitate the framing, accompanied by dimensional clearances up to three and a half inches maximum.

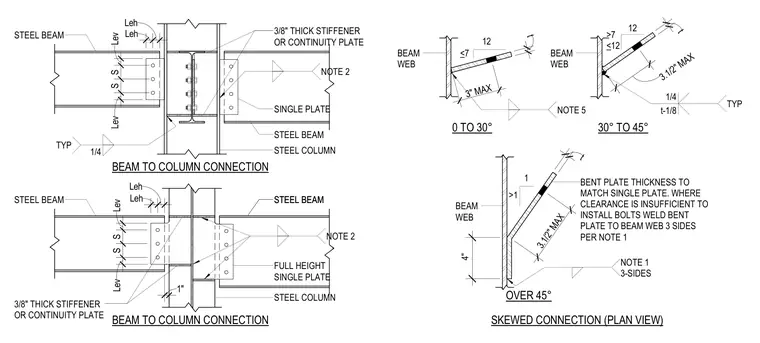

SKEWED CONNECTION (PLAN VIEW) >1 1 3.1/2" MAX >7 <12 12 3" MAX <7 12 0 TO 30° 30° TO 45° OVER 45° t-1/8 1/4 TYP NOTE 1 3-SIDES NOTE 5 BEAM WEB BEAM WEB BEAM WEB t t BENT PLATE THICKNESS TO MATCH SINGLE PLATE. WHERE CLEARANCE IS INSUFFICIENT TO INSTALL BOLTS WELD BENT PLATE TO BEAM WEB 3 SIDES PER NOTE 1 t STEEL BEAM STEEL BEAM STEEL BEAM STEEL BEAM SINGLE PLATE NOTE 2 NOTE 2 3/8" THICK STIFFENER OR CONTINUITY PLATE 3/8" THICK STIFFENER OR CONTINUITY PLATE BEAM TO COLUMN CONNECTION BEAM TO COLUMN CONNECTION STEEL BEAM FULL HEIGHT SINGLE PLATE STEEL COLUMN STEEL COLUMN 1/4 TYP 9" 4" Lev S S Lev Leh Leh 1" Lev S S Lev Leh Leh 3.1/2" MAX
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
