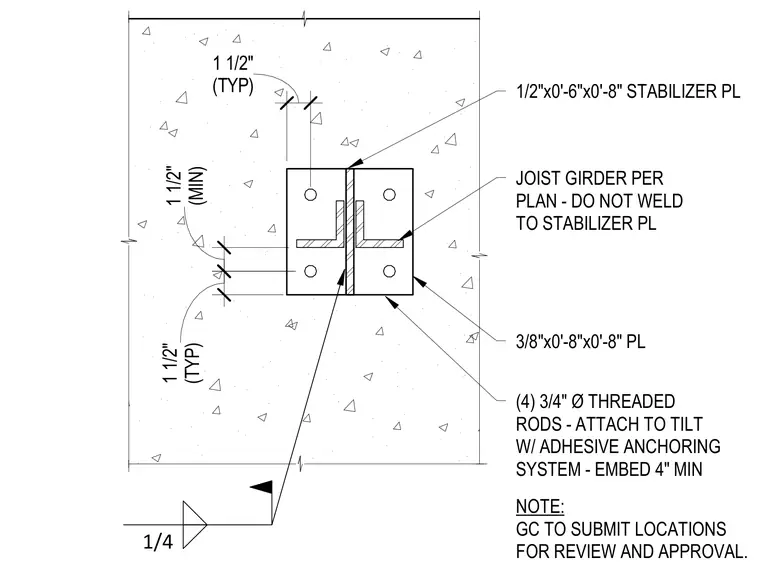

A structural steel embed plate measuring 3/8 inches by 0 feet 8 inches by 0 feet 8 inches is secured to a tilt-up concrete wall using four 3/4-inch diameter threaded rods with an adhesive anchoring system embedded a minimum of 4 inches. A stabilizer plate measuring 1/2 inches by 0 feet 6 inches by 0 feet 8 inches is welded to the embed plate. The joist girder connects per plan and is left unwelded to the stabilizer plate. General contractor to submit locations for review and approval.
(TYP) 1 1/2" (TYP) 1 1/2" (MIN) 1 1/2" 1/2"x0'-6"x0'-8" STABILIZER PL JOIST GIRDER PER PLAN - DO NOT WELD TO STABILIZER PL 3/8"x0'-8"x0'-8" PL (4) 3/4" Ø THREADED RODS - ATTACH TO TILT W/ ADHESIVE ANCHORING SYSTEM - EMBED 4" MIN 1/4 NOTE: GC TO SUBMIT LOCATIONS FOR REVIEW AND APPROVAL.
