Structural · S-4RA55

Beam to HSS Column Connection

Materials

Steel

Elements

Columns Beams Walls Roofs Floors / Slabs Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection

About this detail

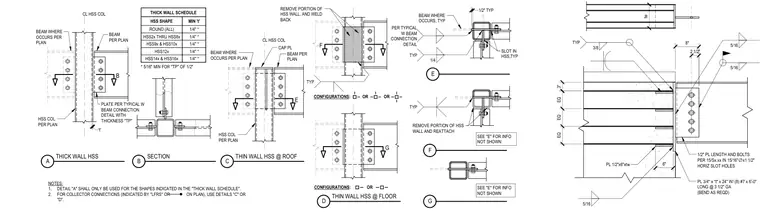

A wide-flange beam connects to a hollow structural section column using a welded plate and bolted shear tab configuration. The assembly incorporates a plate welded to the HSS column with a five-bolt connection pattern matching horizontal slotted holes in the framing member. Additional configurations detail the modifications required for thin-wall versus thick-wall HSS shapes at roof and floor levels, including cap plates and slotting details. Notes specify that certain thick-wall details are restricted to shapes indicated in the schedule, while specific collector configurations require designated alternative details.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
