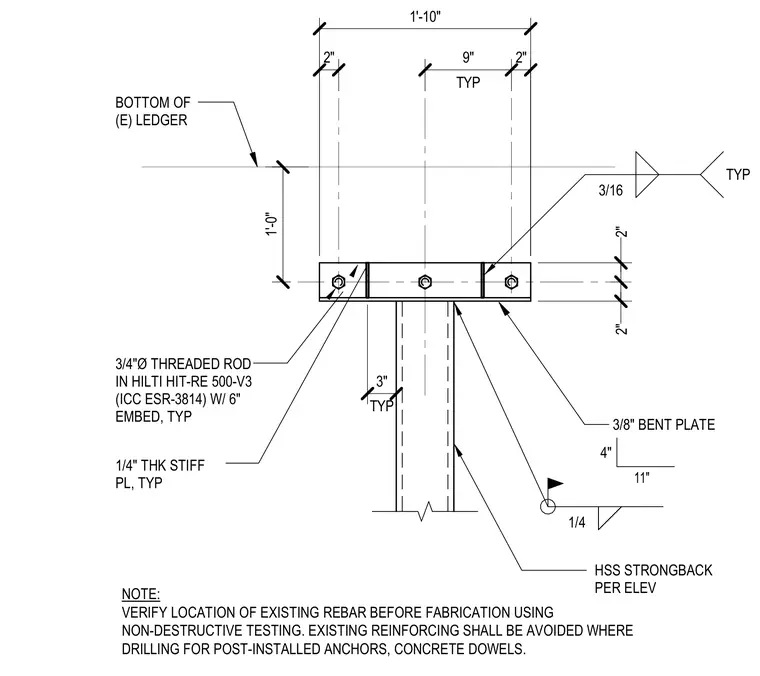

An HSS strongback connects to the bottom of an existing concrete ledger using a three-eighths-inch thick bent plate and three-quarter-inch diameter threaded rods installed with Hilti HIT-RE 500-V3 adhesive anchor epoxy having a six-inch embedment. One-quarter-inch thick stiffener plates are welded to the bent plate with typical three-sixteenths-inch fillet welds. The strongback itself is secured with a one-quarter-inch fillet weld at the bent plate connection. A drawing note instructs to verify the location of existing rebar using non-destructive testing before fabrication and to avoid existing reinforcing when drilling for post-installed anchors and concrete dowels.
TYP 3/16 3/8" BENT PLATE 1/4 BOTTOM OF (E) LEDGER 3/4"Ø THREADED ROD IN HILTI HIT-RE 500-V3 (ICC ESR-3814) W/ 6" EMBED, TYP 1/4" THK STIFF PL, TYP NOTE: VERIFY LOCATION OF EXISTING REBAR BEFORE FABRICATION USING NON-DESTRUCTIVE TESTING. EXISTING REINFORCING SHALL BE AVOIDED WHERE DRILLING FOR POST-INSTALLED ANCHORS, CONCRETE DOWELS. HSS STRONGBACK PER ELEV 4" 11" 1'-10" TYP 9" 2" TYP 3" 2" 2" 1'-0" 2"
