Structural · S-4QSYE

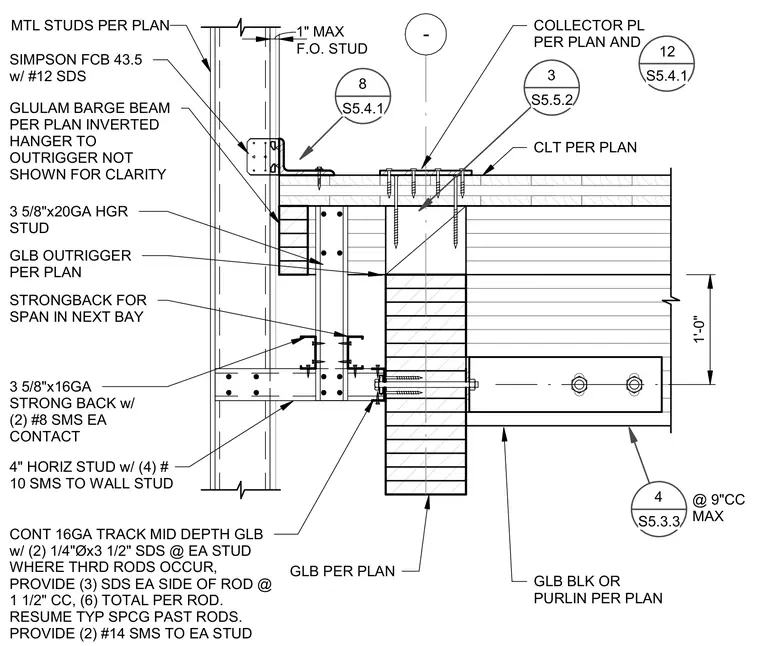

Exterior Wall at Glulam Beam and CLT Floor Connection

Materials

Timber / Wood Metal (misc.)

Elements

Beams Walls

Connections

Timber / Mass-Timber Connection

About this detail

An exterior metal stud wall, a cross-laminated timber floor deck, and a glulam barge beam with an outrigger connect structurally. The cross-laminated timber floor panel bears on the glulam framing and connects via a continuous collector plate. A Simpson FCB 43.5 fastener with self-drilling screws attaches the glulam barge beam to the assembly. A mid-depth continuous sixteen-gauge track fastens to the glulam with quarter-inch by three-and-a-half-inch self-drilling screws at each stud, supplemented by additional screws spaced at one and a half inches center-to-center where threaded rods occur. Three-and-five-eighths-inch twenty-gauge hanger studs, a three-and-five-eighths-inch sixteen-gauge strongback, and four-inch horizontal studs with sheet metal screws complete the cold-formed steel backup framing.
