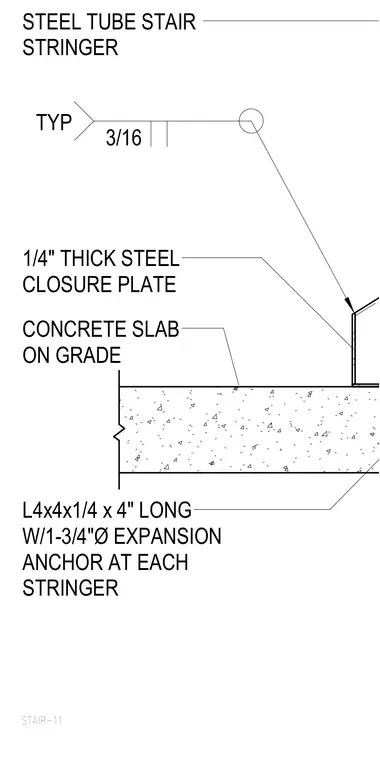

A steel tube stair stringer bears on a concrete slab on grade and is secured by an L4x4x1/4 angle four inches long with a three-quarter-inch-diameter expansion anchor at each stringer. A one-quarter-inch-thick steel closure plate is welded to the stringer with three-sixteenth-inch typical fillet welds.
L4x4x1/4 x 4" LONG W/1-3/4"Ø EXPANSION ANCHOR AT EACH STRINGER CONCRETE SLAB ON GRADE STEEL TUBE STAIR STRINGER 1/4" THICK STEEL CLOSURE PLATE STAIR-11 3/16 TYP
