Wood Purlin to Concrete Wall Anchorage Connection

Materials

Concrete

Elements

Beams Walls Anchors / Embeds

Connections

Embed Plate Timber / Mass-Timber Connection

About this detail

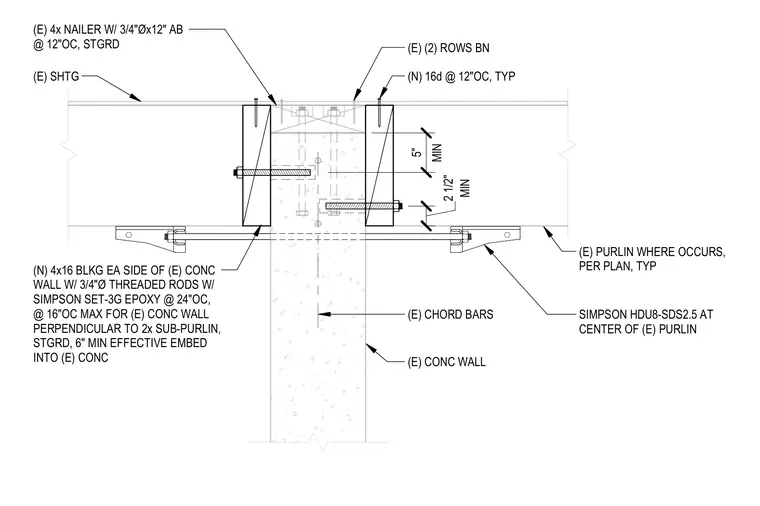

An existing concrete wall anchors a wood purlin assembly through new four-by-six blocking secured on each side with three-quarter-inch diameter threaded rods and Simpson SET-3G epoxy at twenty-four inches on center, spaced at sixteen inches maximum for walls perpendicular to sub-purlins with a six-inch minimum effective embedment. Existing four-inch nailers attach via two rows of staggered three-quarter-inch diameter by twelve-inch anchor bolts at twelve inches on center. Existing sheathing fastens with new sixteen-penny nails at twelve inches on center typically. Simpson HDU8-SDS2.5 hold-down brackets anchor at the center of the existing purlin where required per plan.
