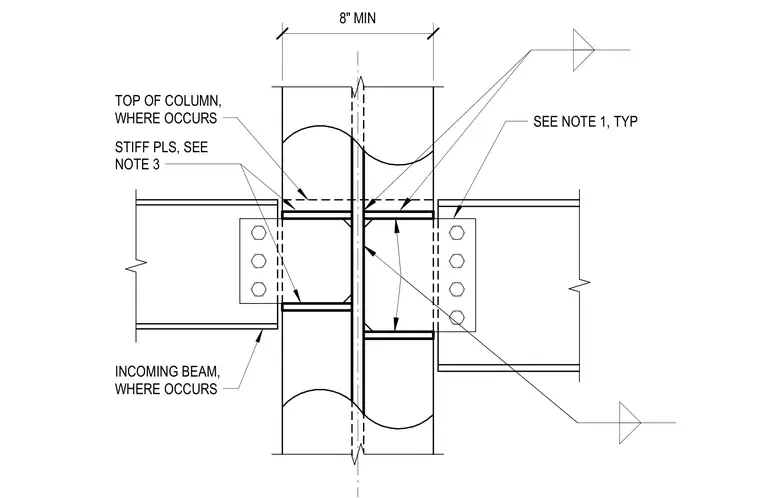

Incoming steel beams frame into the web of a wide flange steel column using bolted shear tab connections. Horizontal stiffener plates are welded between the column flanges at the beam top and bottom flange locations where required. A minimum clearance dimension of eight inches is maintained across the column web profile. Additional connection requirements are referenced by structural notes on the drawing.
8" MIN INCOMING BEAM, WHERE OCCURS TOP OF COLUMN, WHERE OCCURS STIFF PLS, SEE NOTE 3 SEE NOTE 1, TYP
