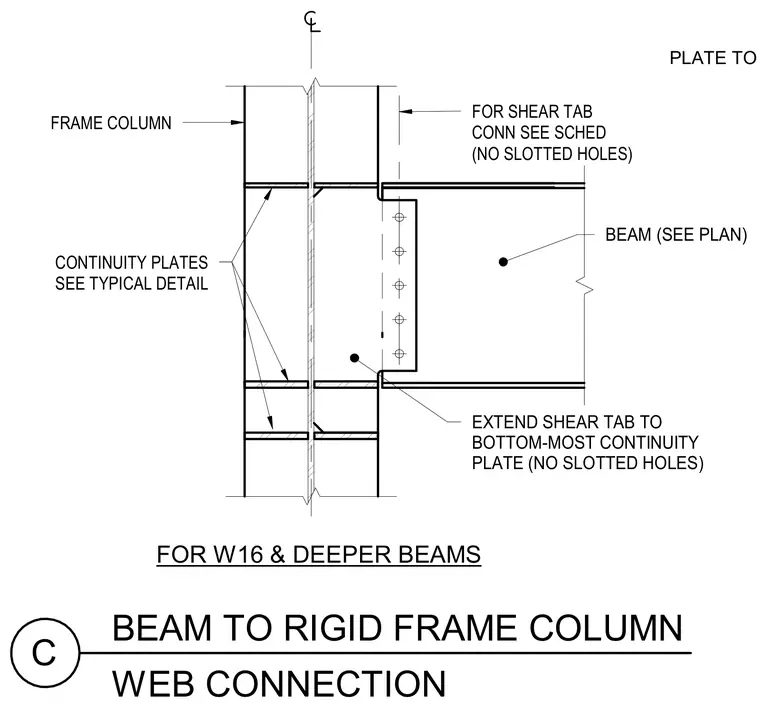

A structural beam frames into a rigid frame column web for W16 and deeper beams. Continuity plates are provided inside the column flanges per typical details. The shear plate extends down to the bottom-most continuity plate and uses unslotted holes. The beam web connects to the shear tab using standard fasteners sized per structural schedules.
BEAM TO RIGID FRAME COLUMN C WEB CONNECTION FOR W16 & DEEPER BEAMS FRAME COLUMN BEAM (SEE PLAN) PLATE TO COL FLG CONTINUITY PLATES SEE TYPICAL DETAIL EXTEND SHEAR TAB TO BOTTOM-MOST CONTINUITY PLATE (NO SLOTTED HOLES) FOR SHEAR TAB CONN SEE SCHED (NO SLOTTED HOLES)
