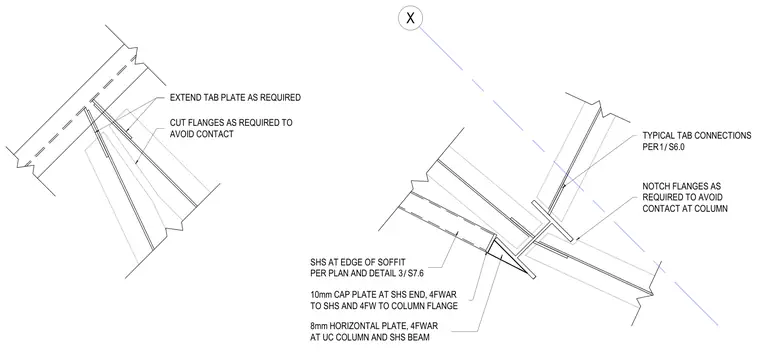

A ten millimeter cap plate terminates the square hollow section member, secured with four millimeter fillet welds to both the SHS and the column flange. An eight millimeter horizontal plate connects the universal column and SHS beam using four millimeter fillet welds. Flanges are notched or cut as required to avoid physical contact at the column and edge of soffit. Tab plates are extended as required, and typical tab connections follow sheet S6.0.
EXTEND TAB PLATE AS REQUIRED CUT FLANGES AS REQUIRED TO AVOID CONTACT X TYPICAL TAB CONNECTIONS PER / 1 S6.0 NOTCH FLANGES AS REQUIRED TO AVOID CONTACT AT COLUMN SHS AT EDGE OF SOFFIT PER PLAN AND DETAIL / 3 S7.6 10mm CAP PLATE AT SHS END, 4FWAR TO SHS AND 4FW TO COLUMN FLANGE 8mm HORIZONTAL PLATE, 4FWAR AT UC COLUMN AND SHS BEAM
