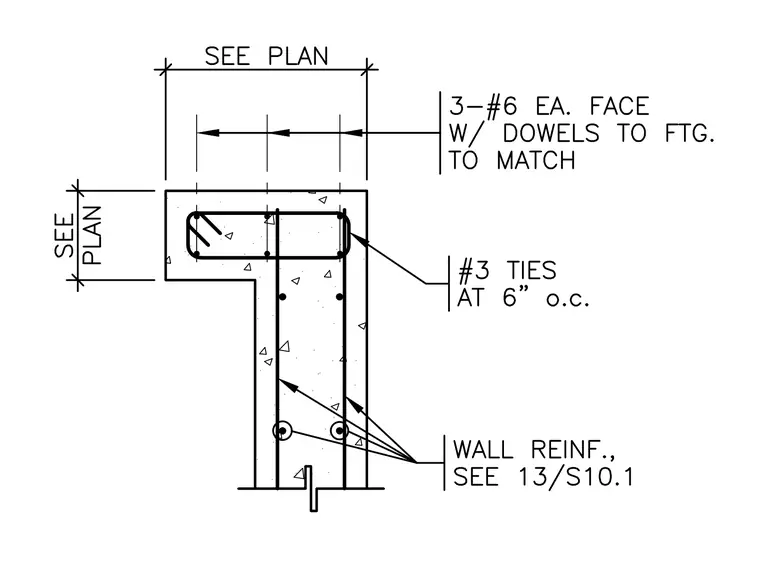

A concrete wall section reinforced with vertical bars sized per plan and tied with number 3 ties spaced at 6 inches on center. The wall includes three number 6 reinforcing bars on each face with dowels extending to the footing to match. Wall dimensions and thickness are sized per plan.
