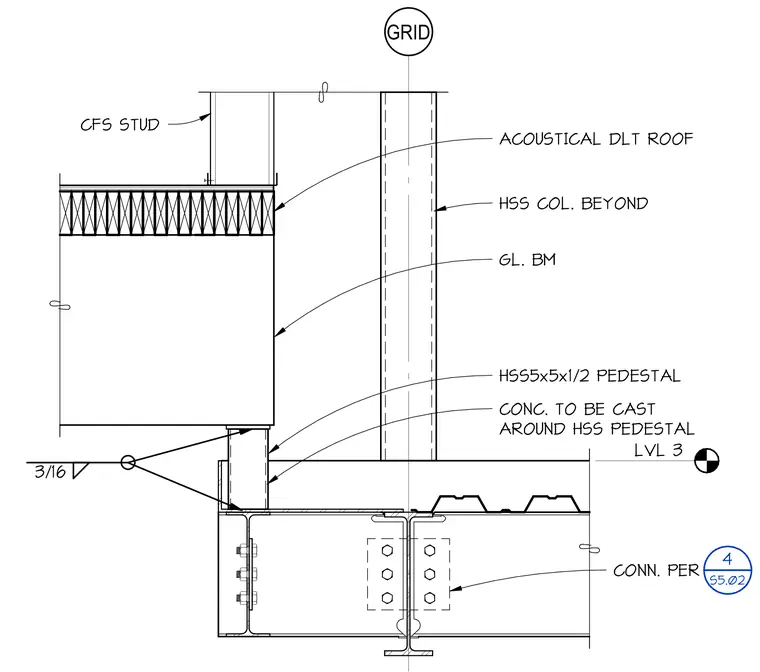

An HSS5x5x1/2 hollow structural section pedestal sits on a supporting steel glulam beam and is cast around with concrete at level 3. A cold-formed steel stud and acoustical dowel laminated timber roof assembly tie into the connection alongside an HSS column located beyond the grid line. Connections are detailed per structural sheet S5.02.
LVL 3 GRID 3/16 CONN. PER 4 S5.02 CONC. TO BE CAST AROUND HSS PEDESTAL HSS5x5x1/2 PEDESTAL CFS STUD HSS COL. BEYOND ACOUSTICAL DLT ROOF GL. BM
