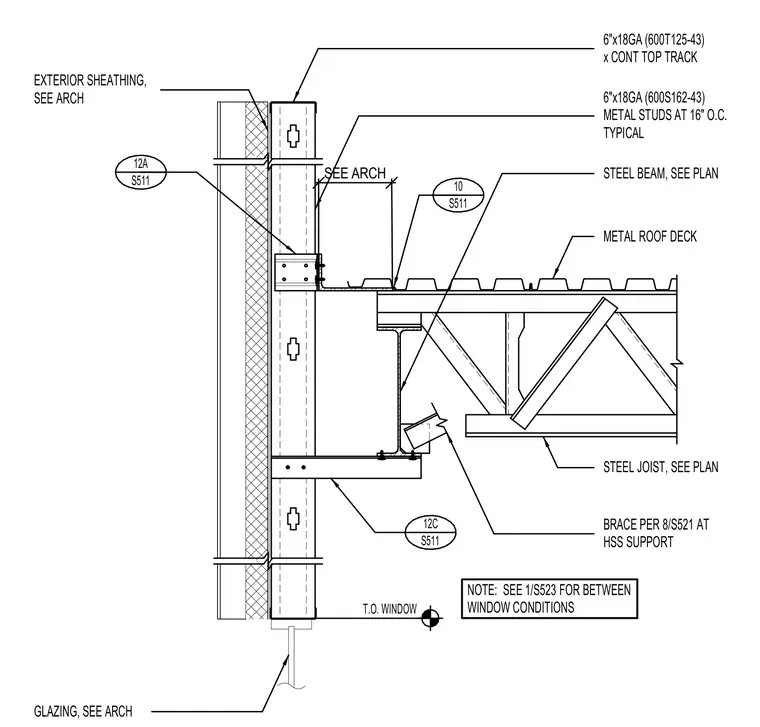

The structural connection at a roof edge interfaces with metal panel cladding and exterior glazing. The assembly incorporates six-inch eighteen-gauge continuous top track and metal studs spaced at sixteen inches on center. A steel beam and metal roof deck bear adjacent to the exterior framing, supported by a steel joist and a braced HSS support. Exterior sheathing and glazing are coordinated per architectural documents, with specific brace attachments detailed on separate sheets.
SEE ARCH BRACE PER 8/S521 AT HSS SUPPORT METAL ROOF DECK STEEL JOIST, SEE PLAN STEEL BEAM, SEE PLAN 6"x18GA (600T125-43) x CONT TOP TRACK GLAZING, SEE ARCH T.O. WINDOW EXTERIOR SHEATHING, SEE ARCH 6"x18GA (600S162-43) METAL STUDS AT 16" O.C. TYPICAL NOTE: SEE 1/S523 FOR BETWEEN WINDOW CONDITIONS 12C S511 10 S511 12A S511
