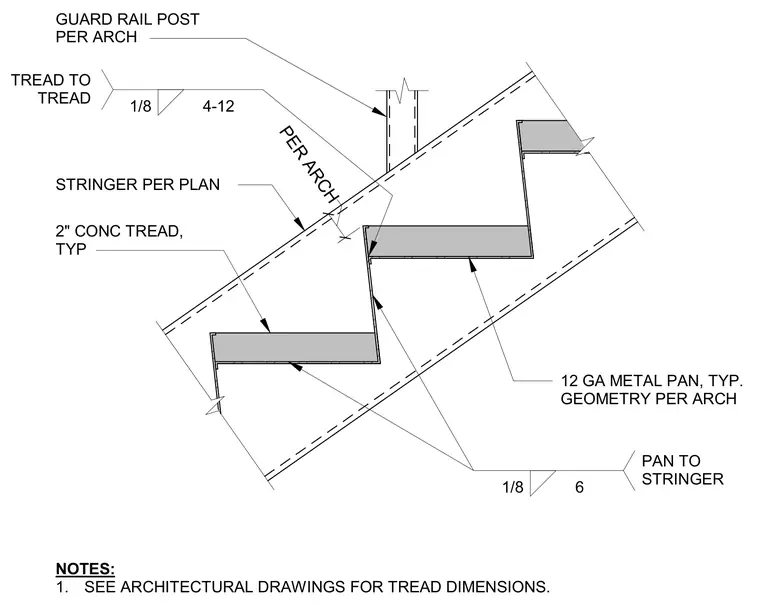

A two-inch concrete fill is placed within a typical twelve-gauge metal pan stair tread supported by a stair stringer sized per plan. The stair pan connects to the stringer with a one-eighth-inch fillet weld spaced at six inches on center. The tread-to-tread connection uses a one-eighth-inch fillet weld at four to twelve inches on center. A guard rail post is attached per architectural drawings. Stair geometry and dimensions must coordinate with architectural drawings.
2" CONC TREAD, TYP 12 GA METAL PAN, TYP. GEOMETRY PER ARCH STRINGER PER PLAN 1/8 4-12 TREAD TO TREAD 1/8 6 PAN TO STRINGER NOTES: 1. SEE ARCHITECTURAL DRAWINGS FOR TREAD DIMENSIONS. GUARD RAIL POST PER ARCH PER ARCH
