Structural · S-4NE7H

Wide Flange Beam to Beam Shear Tab Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

Beam-to-Beam Welded Connection Bolted Connection Expansion / Slip Connection

About this detail

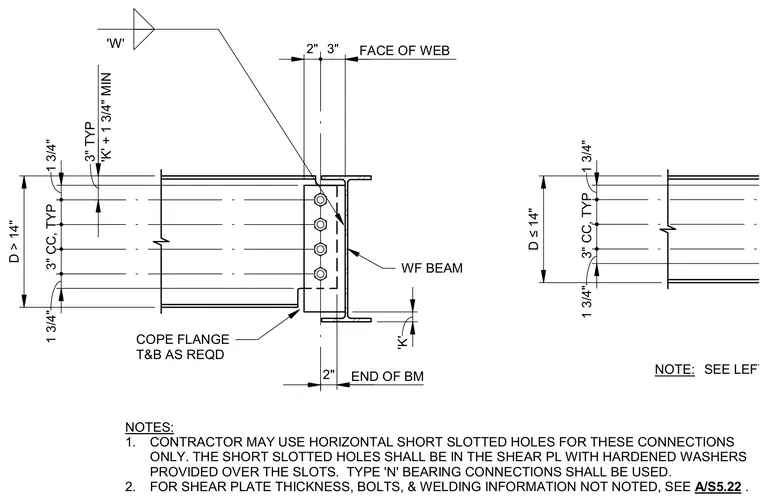

A wide flange beam connects to the web of a supporting wide flange beam using a welded shear plate and high-strength bolts. The supported beam features coped top and bottom flanges to clear the supporting beam flanges, with dimensions specified for varying beam depths greater than or less than fourteen inches. Horizontal short slotted holes are permitted in the shear plate provided hardened washers are used over the slots for type 'N' bearing connections. The shear plate welds to the supporting beam web while the bolts fasten through the supported beam web. Additional shear plate thickness, bolt, and welding criteria are referenced on sheet A/S5.22.
