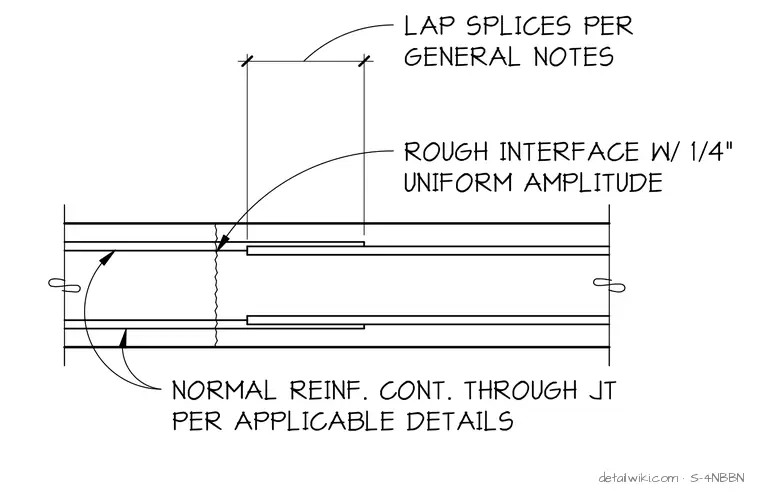

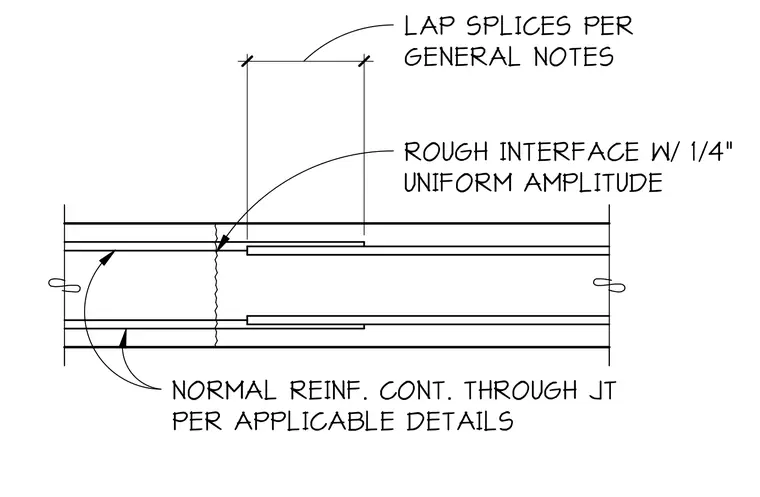

Longitudinal reinforcement continues through the joint as specified in applicable details. The interface between concrete pours requires a rough surface finish with a uniform amplitude of one-quarter inch. Reinforcement bars are lap spliced across the joint in accordance with the project general notes.
