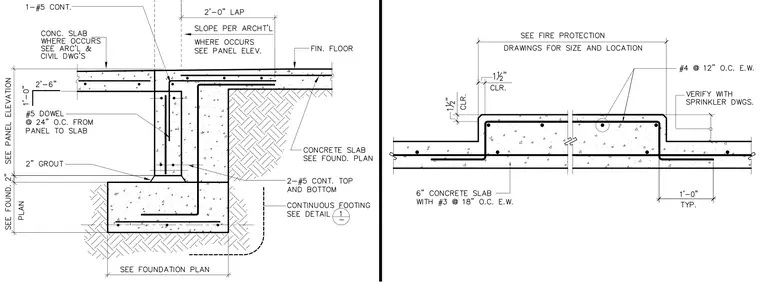

A continuous concrete footing supports a foundation wall that ties into an adjacent concrete slab on grade with number 5 dowels spaced at twenty-four inches on center. The footing contains two number 5 continuous bars at both top and bottom, while the wall incorporates a continuous number 5 top bar with a two-foot lap splice. A two-inch grout layer separates the wall base from the footing. The concrete slab transitions at the wall edge, with finished floor and panel elevation references noted.
